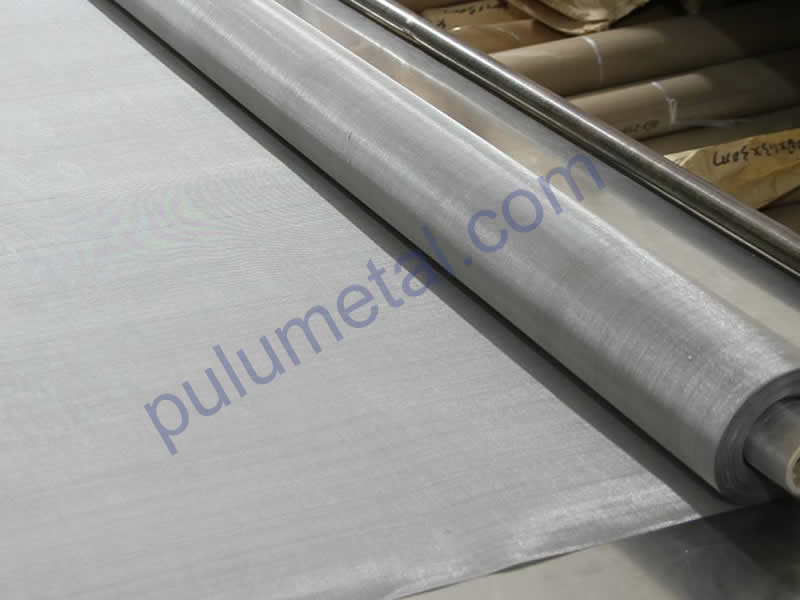

Stainless Steel Wire Mesh

Material:	High quality stainless steel wire
Feature:	Excellent resistance against acid
Application:	Guard against theft, insect-resistant

Material:

200, 202, 302, 304, 304L, 316, 316L and etc. At customers’ requirement.

Weave Pattern:

Application:

In acid, alkali environment conditions sieving and filtering.

Petroleum industry as mud mesh,

Chemical fiber industry as screen mesh.

Plating industry as acid cleaning mesh.

Specification:

Stainless Steel Wire Mesh
Mesh CountPer Inch	Diameter of Wire		Width of Opening		MicronSize	Open Area
Mesh CountPer Inch	Inches	mm	Inches	mm	MicronSize	%Percent
2	0.063	1.60	0.437	11.10	11100.0	76.4
3	0.054	1.372	0.279	7.095	7095.0	70.2
4	0.047	1.104	0.203	5.156	5156.0	65.9
5	0.041	1.041	0.159	4.039	4039.0	63.2
6	0.035	0.889	0.132	3.344	3344.0	62.4
8	0.028	0.711	0.097	2.464	2464.0	60.2
10	0.025	0.635	0.075	1.905	1905.0	56.3
12	0.023	0.584	0.080	1.532	1532.0	52.4
14	0.020	0.508	0.051	1.306	1306.0	51.8
16	0.018	0.457	0.045	1.130	1130.0	50.7
18	0.017	0.432	0.039	0.979	979.0	48.2
20	0.016	0.406	0.034	0.864	864.0	46.2
24	0.014	0.356	0.028	0.703	703.0	44.1
30	0.011	0.330	0.020	0.516	516.0	17.2
35	0.011	0.279	0.018	0.446	446.0	37.8
40	0.010	0.254	0.015	0.381	381.0	36.0
50	0.009	0.229	0.011	0.279	279.0	30.3
60	0.0075	0.1905	0.0092	0.2328	233.0	30.3
70	0.0065	0.1681	0.0078	0.1978	198.0	29.7
80	0.0055	0.1397	0.0070	0.1776	178.0	31.4
100	0.0045	0.1143	0.0035	0.1397	140.0	30.3
120	0.0037	0.0940	0.0046	0.1177	118.0	30.9
150	0.0026	0.0660	0.0041	0.1033	103.0	37.2
160	0.0025	0.0635	0.0038	0.0953	95.0	36.0
180	0.0023	0.0584	0.0033	0.0827	83.0	34.3
200	0.0021	0.0533	0.0029	0.0737	74.0	33.6
250	0.0016	0.0406	0.0024	0.0610	61.0	36.0
270	0.0016	0.0406	0.0021	0.0534	53.0	32.3
300	0.0015	0.0381	0.0018	0.0466	47.0	30.3
325	0.0014	0.0356	0.0017	0.0426	43.0	29.7
400	0.0012	0.0300	0.0015	0.0381	18.0	36.0
500	0.0010	0.0254	0.0010	0.0254	25.0	25.0
635	0.0008	0.0203	0.0008	0.0197	20.0	24.2
